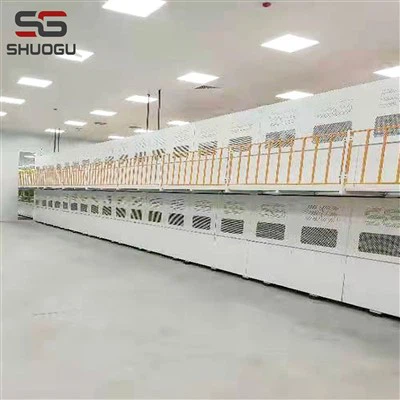

Solar Module Production Line Laminator

Name: Solar Module Production Line Laminator Manufacturers Suppliers Factory
Brand: Shuogu
SKU: 184830212

The principle of the solar photovoltaic laminator is to apply a certain pressure on the surface of each layer of the components, and press these materials together tightly under the heating state. It is the most important step in the production of solar modules.

Send Inquiry

Description

The principle of the solar module production line laminator is to apply a certain pressure on the surface of each layer of the modules, and laminating these materials together tightly under the heating state. It is the most important step in the production of solar modules.

QINHUANGDAO SHUOGU has been committed to the research and development of solar module production equipment since its establishment. The equipment currently produced has stable performance, energy saving and high efficiency.

As a direct factory which manufacturing solar module production line laminator, in addition to the price advantage, we can help customers choose suitable equipment, and can also provide complete lines or auxiliary equipment.

We are looking forward to cooperate with you!

Products Specification

Name		Solar module production line laminator
Model		SGCY-BS2794		SGCY-BS27100
Laminating area (mm)		270094004		2700100004
Heating method		Oil heating /electric heating
Rated Power		430KW		430KW
Average working power		≤210KW		≤210KW
Dimension ((mm)		4010049003400		4250049003400
Main parameter
Power supply	AC380V 3 Phase 5 circuit 50Hz		Operating Platform		Touch screen + PLC
Laminating Chamber Height	35mm		Compressed air flow		≥1000L/min
Maximum height of upper chamber	≥250mm		Temperature uniformity		≤±2℃
Temperature control mode	Intelligent PID control		Working height of upper chamber		100-120mm
Temperature control point	Standard for each chamber 5		Heating medium		SD320 heating oil
Rubber lifetime	≥6000 times		Conveying speed		4～14m/min
Vacuum pump	2X-70+ZJP600/2X-70		Conveyor bearing load		≤300Kg
Service life	≥10 years		Utilization rate		≥98%

Products Advantage

A: The equipment reserved PLC interface, can be seamlessly connected with the pipeline, multi-point positioning control of modules, unattended laminating process.

B: We use the components from well-known international and domestic brands to ensure the normal service life of accessories.

C: There are emergency stop buttons on the feeding platform, discharging platform and touch screen. Operator can press the E-button to stop the machine.

D: We provide customers with equipment manuals, maintenance manuals, packing lists, certificates of conformity, delivery notes, customer acceptance reports, and also provide customers with factory training.

common faults and elimination

NO.	Fault phenomenon	Possible reason	Elimination method
1	The upper chamber can be inflated, while the upper chamber vacuum gauge pointer cannot return to zero	Vacuum gauge damage	Replace
		The plastic tube connected to the vacuum gauge has a dead bend	Straighten out
		The upper chamber vacuum valve is not closed tightly	Close or replace
2	The lower chamber cannot be inflated	The lower chamber inflation solenoid valve is damaged and cannot be started.	Replace
2	The lower chamber cannot be inflated	Lower chamber air/lower chamber vacuum switch is damaged	Replace switch
3	The lower chamber can be inflated, while the lower chamber vacuum gauge pointer cannot return to zero	The lower chamber vacuum valve is not closed tightly	Adjust the lower chamber vacuum valve
